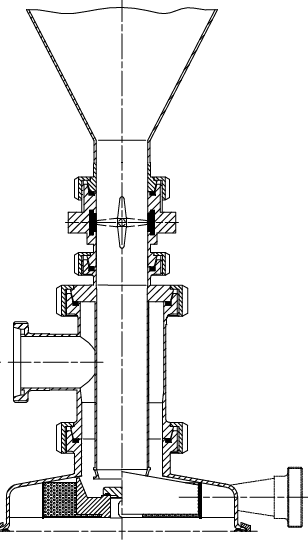

Equipment for the dispersion of large quantities of product, using a direct vertical feed of powders or crystals, which combine with a tangential inflow of the dissolving liquid, for direct mixing at the pump inlet.

The product is mixed by centrifugal forces and then passed through a special grid that acts as a mill, resulting in maximum homogenisation of the product and the total absence of lumps.

Heavy products such as sugar, salt, starch, protein, pectin, casein, carrageenin and other completely micronised products are fully dissolved to produce a final product of minimum viscosity, maximum homogeneity and maximum solubility.

TECHNICAL DATA

Material: Stainless steel 304 and/or 316
Flow rates up to 70 m3/h
Max. height : 20 mH2O
Max. dissolution/hour: 8.000 Kg
P Max. : 18,5 Kw
Special configurations on request
