STANDARD FEATURES

• Complete separation between two different products
• Maximum versatility for different applications and products
• Maximum hygiene (EHEDG, 3A certified)
• Easy maintenance without use of special tools
• Sturdiness: valve bodies made from solid bar Balanced valve shutters made from solid bar

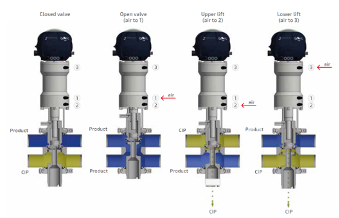

• Upper and lower seat lift
• Serviceable actuator
• Connections from DN15 to DN150 (from 3/4” to 6”)
• Seals: EPDM, FKM, HNBR
• Maximum pressure: 10 bar

VERSIONS

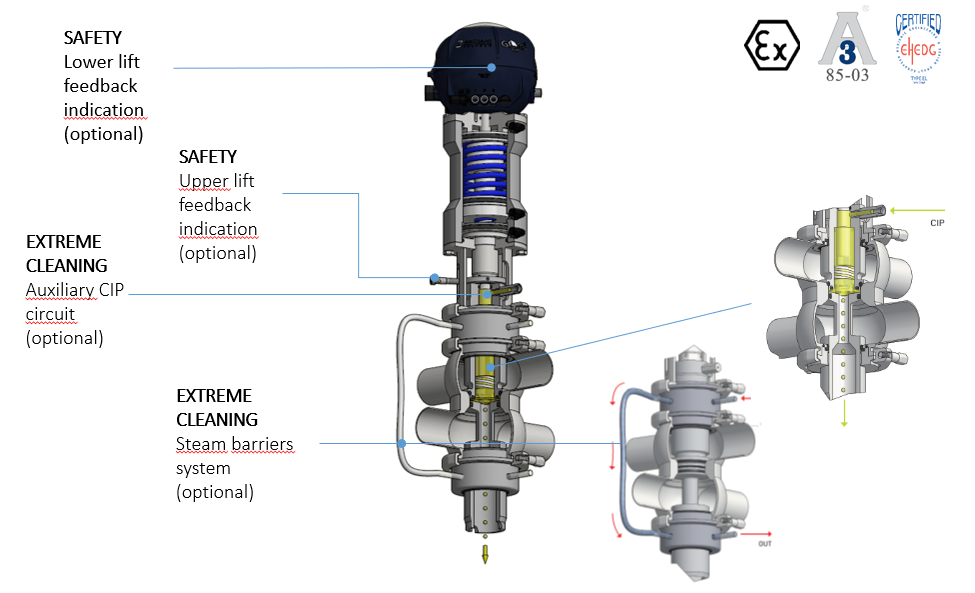

• B925V Aseptic double seat valve (with steam barrier)
• B925B Double seat valve with auxiliary external cleaning circuit
• B925A Aseptic double seat valve with auxiliary external cleaning circuit

SPECIAL VALVES

• Mixproof valves for high pressure applications (>10 bar)
• Valves for special applications (back-to back, pigging, long stroke)

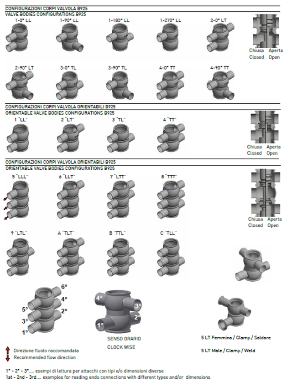

• Special DN body sizes
